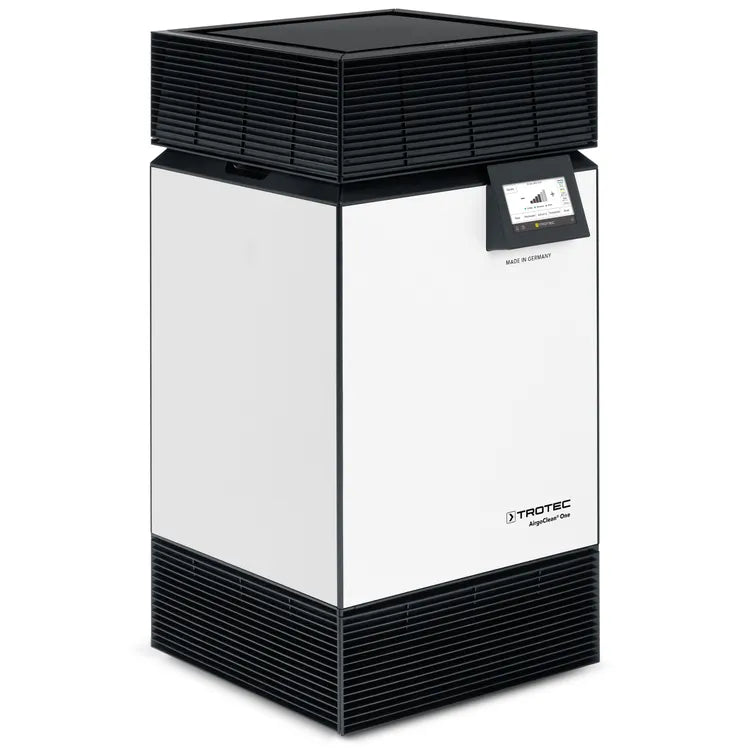

H14 High-Performance Air Purifier AirgoClean® ONE

Description

AirgoClean® – Strong brand. Clear message. Clean air.

The name says it all: AirgoClean® is Trotec’s brand name for comfort air purification in private settings. And here, the AirgoClean® One is our clear number 1 and first recommendation for virus filtration and continuous air purification in meeting rooms, waiting rooms, medical and veterinary practices, law firms, or high-end private environments.

Many things can be improved. The AirgoClean® One cannot.

Admittedly: Not a few air purifiers also look good at first glance. But in the long run, many run the risk of literally running out of air sooner or later. Continuous operation, permanent air purification around the clock, nonstop virus filtration – this puts a strain on the materials, and you need to be made for that. Just like the AirgoClean® One from Trotec.

For good reason, you benefit from the AirgoClean® One’s equally durable and user-friendly design with effective 360° air guidance and long filter service life – after all, it is a high-performance air purifier developed and manufactured in Germany to the highest quality standards, made by original Trotec production, housing exclusively efficient branded components of the latest technology generation from leading component manufacturers. Every installed quality filter is produced, individually tested, and certified in Germany. The effectiveness of the H14 HEPA filter system of this high-performance air purifier has been scientifically certified!

Air quality you can see, operating comfort to marvel at

Thanks to the integrated triple air quality sensors, you always have all important air quality values in view. In addition to air temperature and humidity as room climate indicators and ultrafine dust load, the AirgoClean^® One displays the current carbon dioxide concentration in the room air. All information can also be conveniently accessed via app and the device controlled remotely.

AirgoClean® One – when premium is your standard

The AirgoClean® One guarantees you the reassuring "coming home feeling" when entering your own four walls, office spaces, law firm, or practice. Enter. Close the door, take a deep breath, feel safe. Air pollutants, germs, or fine dust stay outside, inside there is nothing but clean filtered breathing air. Protect yourself and your environment with HEPA-filtered clean air that is 99.995% free of harmful air pollutants.

The AirgoClean® One removes 99.995% of all airborne pollutants down to a size of 0.1 micrometres from the room air:

• Bacteria and viruses
• Volatile organic compounds (VOC)
• Dust mites
• House dust
• Mould spores
• Animal dander
• Fine dust
• Pollen (flower dust)
• Animal odours

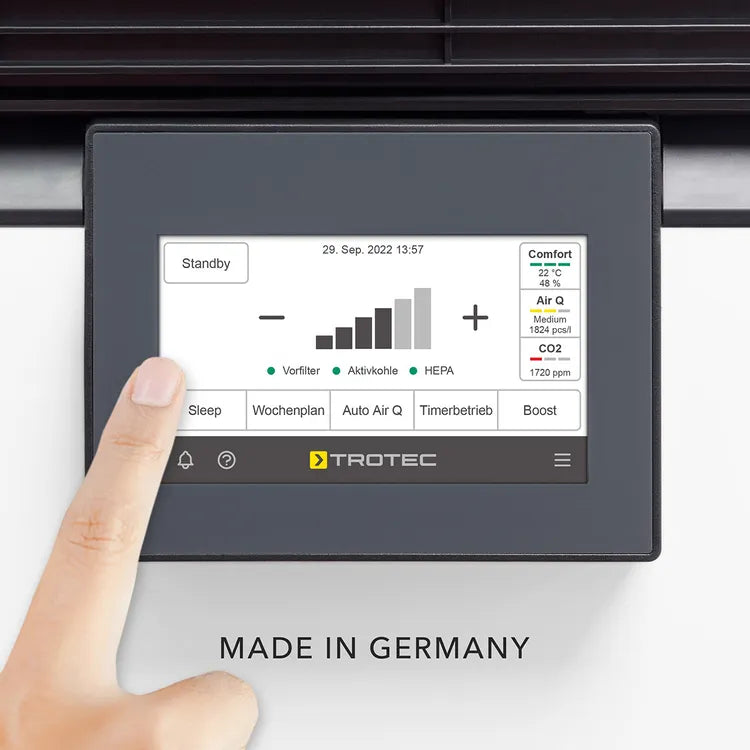

“Touch & play” via touch display or app – top-class comfort functions

If you are a fan of complicated switch sequences or adjusting numerous controls, the AirgoClean^® One will probably disappoint you. Everyone else will be enthusiastic about the comfort features of the AirgoClean^® One, because with this H14 high-performance air purifier, all parameters can be conveniently set via touch display or app. And with configuration options such as service information, the AirgoClean^® One has plenty to offer:

Sensor-supported automatic operation

In addition to manual control of air purification performance in 6 levels, the AirgoClean^® One has a convenient automatic mode. Highly sensitive sensors determine the particle load in the room air and the concentration of volatile organic compounds (VOC). The values are displayed in real time on the touch display and simultaneously regulate the air and filter performance of the device fully automatically to remove suspended particles from the room air in the shortest possible time.

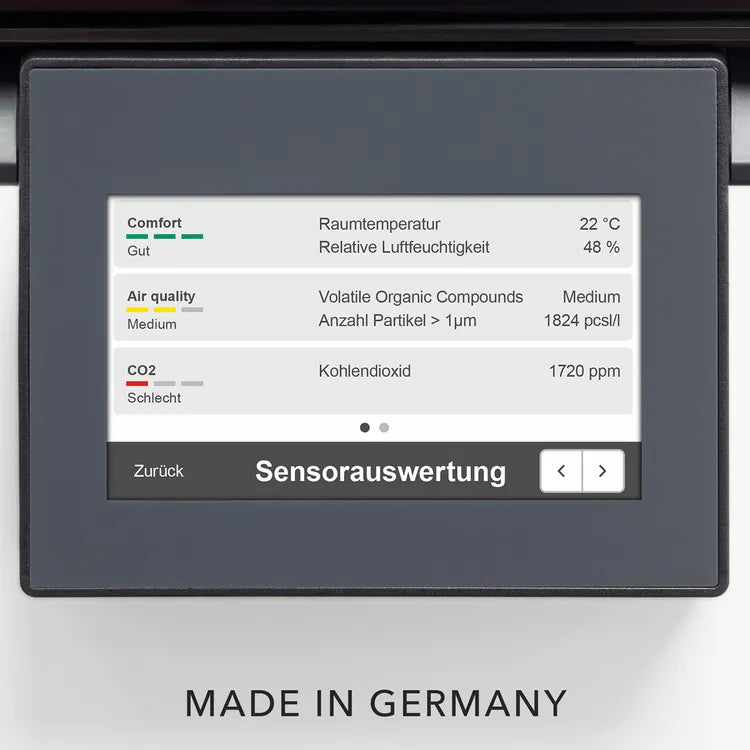

Triple air quality sensor system for VOC, PM1 and CO2

The AirgoClean^® One is equipped with an effective triple air quality sensor system. This way, the air purifier can simultaneously capture and display all important parameters of room air quality. In addition to air temperature and humidity as room climate indicators, the AirgoClean^® One also determines the concentration of volatile organic compounds (VOC) in the room air and the ultrafine dust load (PM1).

Furthermore, a CO₂ sensor informs you about the current carbon dioxide concentration in the room air. This makes rigid and energy-intensive ventilation intervals obsolete. Instead of providing fresh air at fixed intervals, you can ventilate precisely when the sensor indicates a critical level of carbon dioxide concentration.

All air quality parameters are displayed on the AirgoClean^® One’s display not only numerically but also as a colour bar indicator from green through yellow to red. This way, even without reading the numerical values, you quickly have all air quality parameters in view.

Boost mode

The boost mode is especially for accelerated ventilation of the room, for example in acute situations where a particularly fast and effective cleaning of indoor air is needed. The air is quickly cleaned to an optimal level by the highest fan speed. This allows the air in meeting, break, or common rooms to be cleaned quickly and easily to a good quality level. Allergy sufferers who open the window to ventilate have pollen or dust entering filtered from the air within minutes. In the boost mode of the AirgoClean^® One, airborne pollutants and suspended particles are removed from the room air at the highest air purification performance through the highest ventilation level and cleaned to an optimal level.

Night mode with reduced fan speed and low noise level

The noise-reduced night mode enables clean filtered room air even during sleep. The display lighting is dimmed and the air flow is regulated to the lowest fan speed.

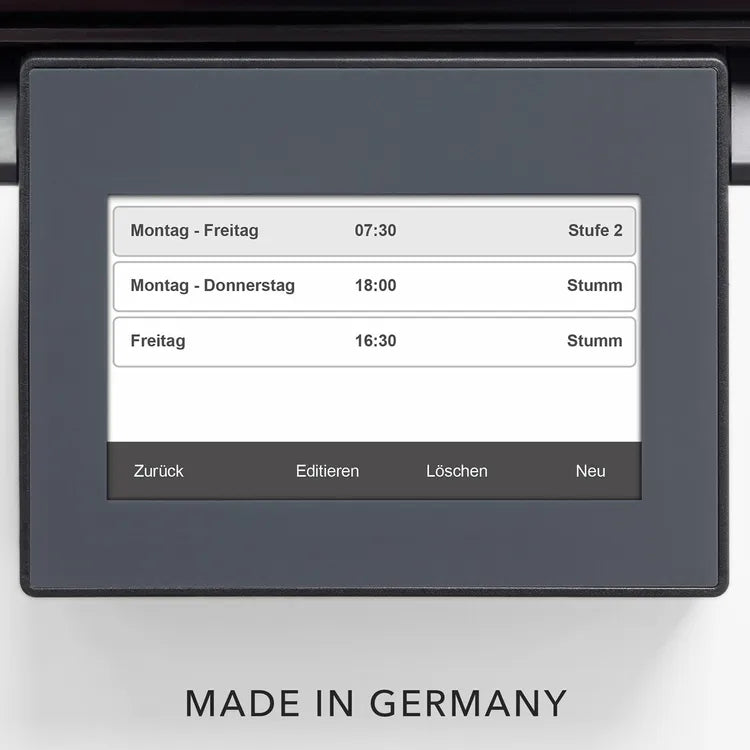

Timer function with convenient weekly planner

While classic timers usually only allow preselection of on and off times, the AirgoClean^® One has a top-class operating planner. For each individual day of the week separately or all days together, the desired on and off times can be precisely set.

For example, you can set the same on times from Monday to Thursday and Friday but different off times if office hours end earlier on Friday. Practically any switching scenario can be easily programmed with the weekly planner.

Intelligent filter service life monitor

The status of the filters is monitored and displayed for all three filter compartments. The status monitoring does not simply work hypothetically, e.g. based on time, but records the actual filter status and informs you exactly when a filter change is necessary.

Air quality display with 14-day history

This unique function shows you the air pollution level of the past 24 hours up to 2 weeks back as a graphical course based on data logger principle. Broken down by VOC and particle load as bar charts and the overall air quality as a line chart. Each of the 5 displayed parameters can be shown or hidden as needed.

Tamper-proof lock screen with PIN protection

With PIN protection, unauthorised input on the AirgoClean^® One can be prevented.

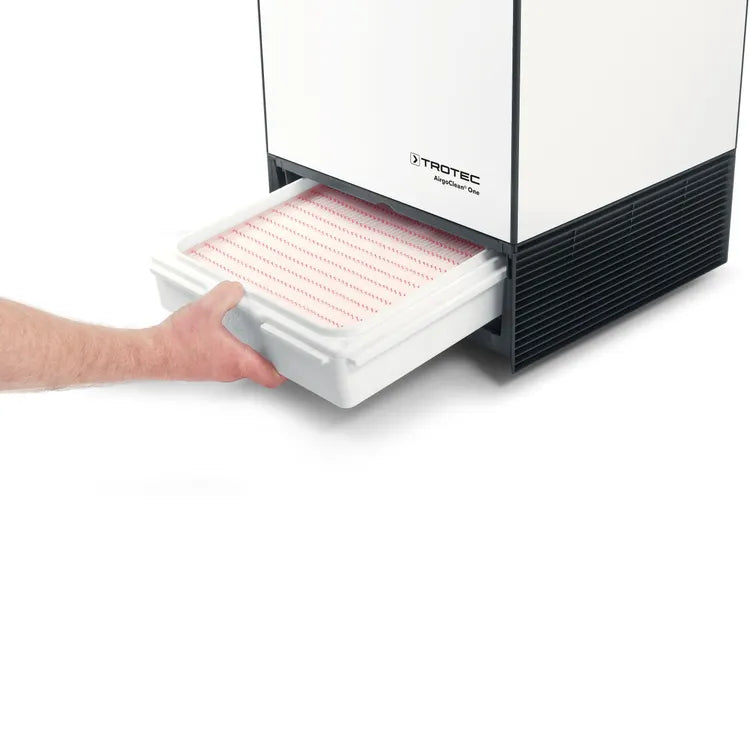

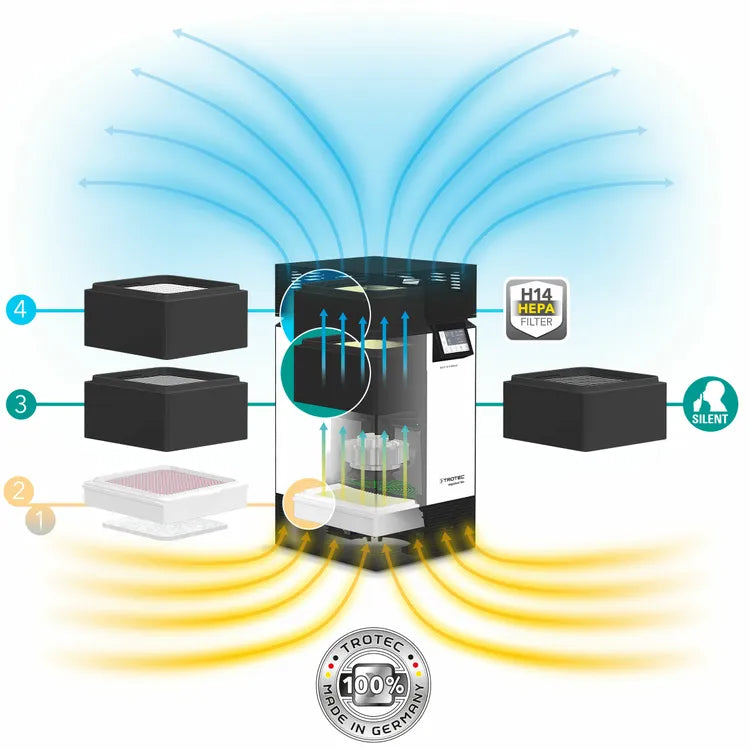

Combination pre-filter
As the first filter stage, the AirgoClean® One has a synthetic pre-filter mat, which is embedded in an F7 pre-filter (ISO ePM10 85%) as the second filter stage and effectively retains coarse and fine dust with a large dust storage capacity.

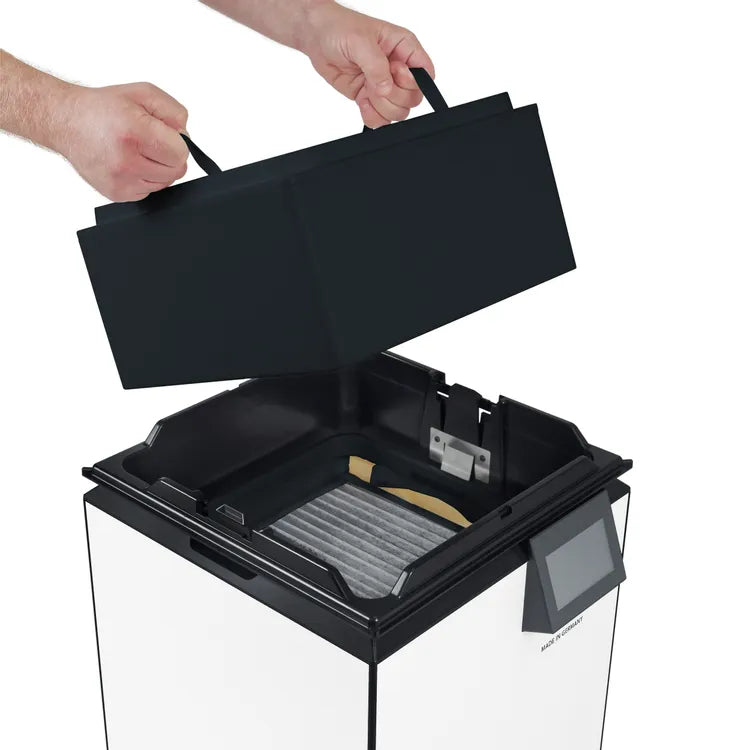

Activated carbon filter
An optional activated carbon filter is available as the third filter stage, which effectively neutralises tobacco smells, pet odours, kitchen smells, smoke smells, as well as formaldehyde and solvent odours from the ambient air. The filter can be used instead of the sound absorber if needed and installed under the H14 filter.

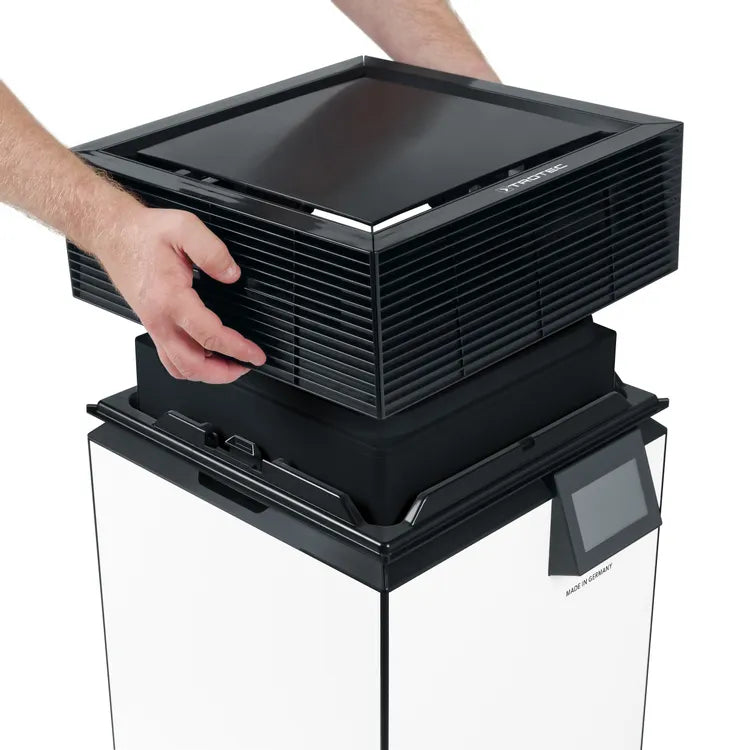

Sound absorber
A powerful silencer for efficient noise reduction of the air purifier is installed as standard at the end. It ensures pleasantly quiet operation. The sound absorber has been extensively flow-optimised so that it is volume-flow neutral and practically creates no flow resistance.

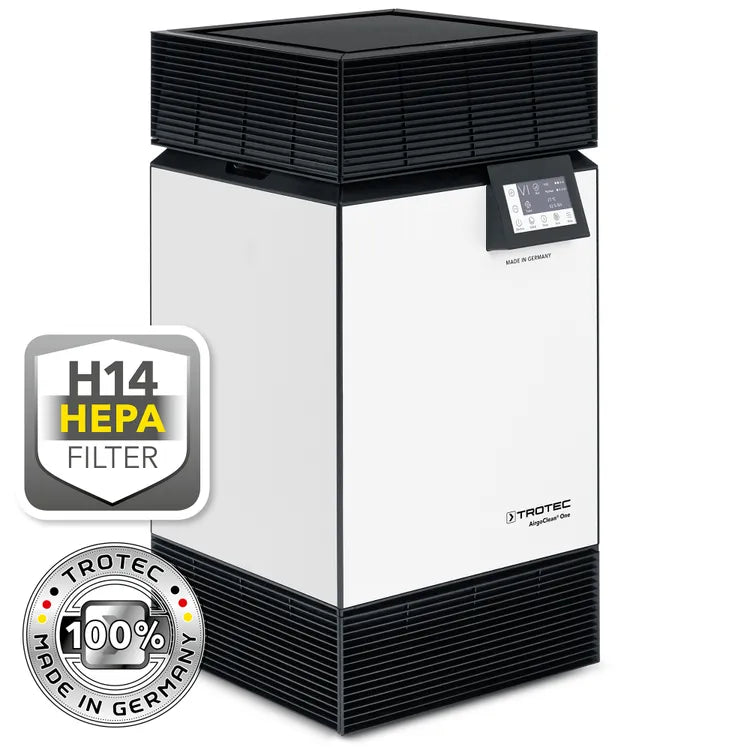

H14 HEPA filter according to EN 1822
The AirgoClean® One comes with an H14 class HEPA filter as the fourth filter stage. This filter, made in Germany, achieves a particle separation efficiency ≥ 99.995% for particle sizes from 0.1 - 0.3 µm at a penetration rate ≤ 0.005%. An H13 HEPA filter is also optionally available.

Application areas and room sizes:

Filtration of fine dust, pollen, and pet hair (CADR):
Suitable for rooms up to 78 m² / 195 m³.
Trotec recommendation* 50 m² / 125 m³

Virus filtration SARS-CoV-2 and general infection protection (flu, cold, measles, etc.)
With 6 air changes (H13) (office, meeting rooms) suitable for rooms up to max. 45 m² / 112 m³.
Trotec recommendation* 28 m² / 70 m³.
With 6 air changes (H14) (office, meeting rooms) suitable for rooms up to max. 40 m² / 100 m³.
Trotec recommendation* 23 m² / 58 m³.
With 10 air changes (H13) (practices, treatment rooms) suitable for rooms up to max. 27 m² / 67 m³.
Trotec recommendation* 17 m² / 43 m³.
With 10 air changes (H14) (practices, treatment rooms) suitable for rooms up to max. 24 m² / 60 m³.
Trotec recommendation* 14 m² / 35 m³.

Note: At the maximum room size, the device runs at the highest fan speed! To achieve an optimal combination of maximum air purification and minimal noise level, we therefore recommend dimensioning about 30% smaller than the maximum possible room size during planning. This way, the device can ensure filtration even at a quieter fan speed.
Advertising usually promotes the maximum value as the "recommended room size". To achieve a good combination of air purification and noise level, our recommended room sizes are based on a maximum sound level of 38 dB(A).

Advantages for practice:

• Powerful and quiet air purification – removes 99.995% of all airborne viruses, bacteria, fine dust particles, and pollen
• Attractive design with effective aerodynamic design – near-floor intake, room-filling clean air flow
• Automatic performance regulation through sensor-supported air quality monitoring
• Triple air quality sensor system – integrated sensors detect volatile organic compounds (VOC), ultrafine dust (PM1), and carbon dioxide (CO₂) in the room air
• Highly efficient HEPA-H14 filter system with pre-filter and odour filter
• Proven reduction of aerosol concentration in room air – scientifically certified
• Air quality trend display for the last 24 hours up to 14 days
• Certified multi-stage HEPA filter system according to EN 1822
• Powerful recirculation, stepless self-regulating EC radial fan for constant circulation rates
• Allows 6-fold air circulation rates per hour in rooms up to 40 m²
• Air quality indicator display – numerical and as traffic light colour bars
• Quiet in operation, effective in result
• Omnidirectional clean air distribution with 360° effective radius
• Optional elimination of disturbing odours
• Tamper-proof lock screen with PIN protection
• Practical remote control included
• Adjustable via Trotec-Control app also with smartphone
• Professional quality “made in Germany” – original Trotec manufacture

Quite smart – device control or status retrieval also conveniently via app on request

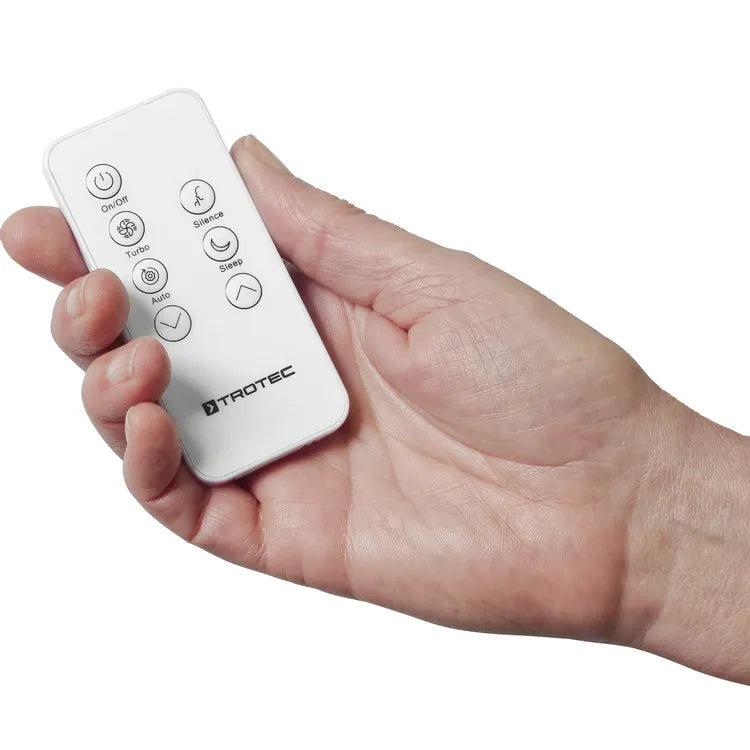

With premium devices like the AirgoClean^® One, customers can rightly expect remote control capability. Therefore, this high-performance air purifier is delivered as standard with a practical remote control, through which important operating settings of the AirgoClean^® One can also be conveniently made remotely.
But in combination with your smartphone, you can now elevate the control possibilities of the AirgoClean^® One to a new level if needed. Because the free Trotec-Control app available for Android and iOS lives up to its name and offers you comfortable functions far beyond simple device control:

Trotec Control – full control via smartphone and Bluetooth

With the Trotec-Control app, you simply connect via Bluetooth to your AirgoClean^® One and control or configure the air purifier conveniently from your desk or sofa.

Whether weekly planner or PIN protection management, the app gives you comfortable access to many device settings and you can change operating modes at any time.

In addition, all room air quality indicators can be comfortably displayed in real time on the smartphone, and the current filter status can also be read. This way, you can be precisely informed about the current filter condition and any necessary filter change.

You can find the Trotec-Control app in your app store.

Filter elements included in the standard scope of delivery of the AirgoClean® One: combination pre-filter consisting of synthetic pre-filter mat and F7 pre-filter (ISO ePM10 85%), sound absorber, and H14 HEPA filter (EN 1822).

Specifications

• SKU 1580001100
• Length without packaging [mm] 435 mm
• Width without packaging [mm] 400 mm
• Height without packaging [mm] 835 mm
• Weight without packaging [kg] 17 kg
• Weight including packaging [kg] 24 kg

Product information

• Recommended room size [m²] 78
• Recommended room size [m³] 195
• Technical data
• Fan stages 6
• Energy
• Number of batteries per device 1
• Cable length [m] 1.4
• Power connection and frequency 230 V, 50/60 Hz
• Power consumption 170 W
• Filter properties
• Filter efficiency 99,995%
• Particulate air filter HEPA H14 (EN 1822)
• Scope of delivery
• Battery(-ies)
• HEPA H14 filter
• Prefilter F7
• Prefilter mat
• Silencer
• Fan type
• Radial
• Functions and features
• Air quality display
• Air quality history 24 h / 14 days
• App control
• Automatic operation
• Automatic operation (not recommended for virus filtration mode)
• Child lock button
• CO₂ sensor
• Digital display
• Filter change indication
• IR remote control
• Manipulation protection
• Memory function
• Night mode
• Particle sensor PM1
• PM2.5 detection
• Silencer
• Temperature / humidity indication
• Timer function
• Touchscreen
• Turbo mode
• Filter change indicator, visual and acoustic
• Main filter
• Pre-filter
• Mobility
• Carrying handle bar
• Plastic wheels
• Connector plug
• Designation
• IP type of protection
• Label
• Protection towards contact
• Protection towards water
• Protection towards foreign matter
