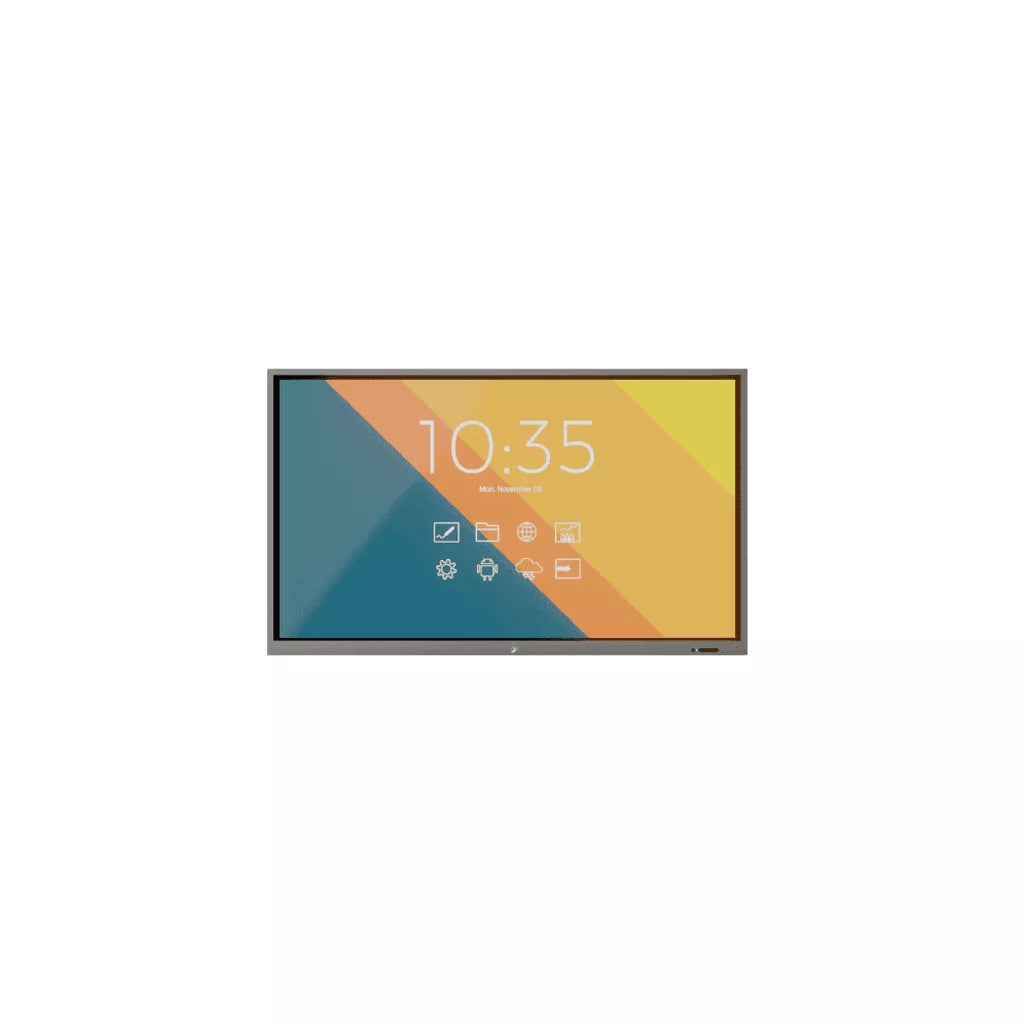

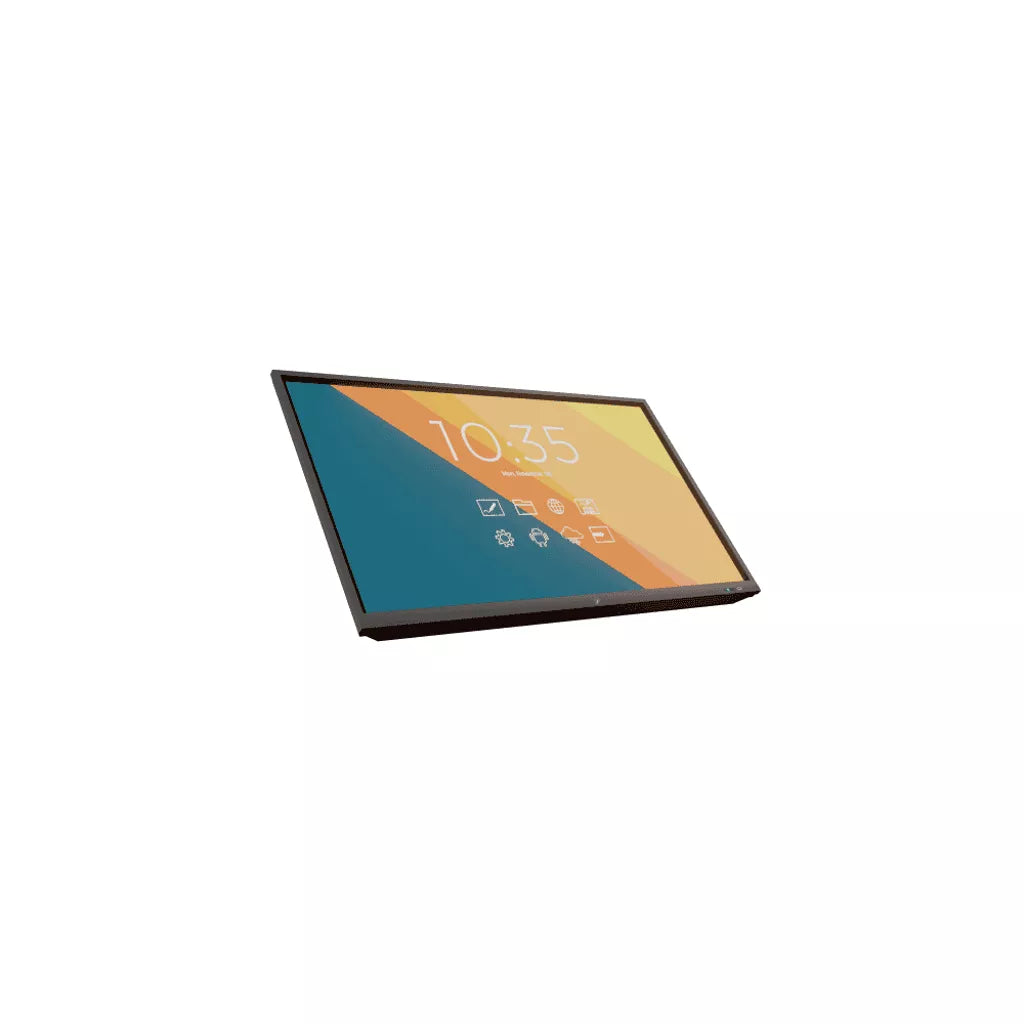

Discover IBT ES75-BB 75” Es Series 4K Android Interactive Touchscreen - 5 Year Warranty included
Discover IBT ES75-BB 75” Es Series 4K Android Interactive Touchscreen - 5 Year Warranty included
Couldn't load pickup availability
Description
Designed for you
4K UHD Display | 20 Point Touch | Integrated speakers
It just works
The Es Series is an affordable, feature rich display that just simply works. It provides an easy to use, 20 point touch UHD interactive touchscreen experience, suitable for Education, Business and Corporate users who want the essential features.
Ready to go
Powered by Android, the built-in Android mini PC means you can start using the pre-installed digital whiteboarding and annotation apps straight out of the box to get to work without delay.
4k UHD Display
Enjoy an impressive and crisp presentation of your text, images and videos helping captivate your audience.
Anti-Glare Coating
With no need to darken the room, and no shadows cast on the screen, the Interactive display can be used anywhere.
Connectivity
Easily connect other devices in the room to the Es Series - HDMI, VGA, USB & RS232 connectivity are all provided. The Intellitouch display makes it super easy to select the input source you want.
20 Point Touch
Utilise the multiple simultaneous writing points or draw and create with multiple users
Clutter-Free Front
With 2 ports on the front, we've made it easier to connect wireless dongles or storage utilizing super-fast USB 3.0 connectivity.
Save Money
Save in running costs - a typical projector uses 1010 Watts on average compared to the 300 Watts from an interactive display.
Specifications
Display
- Size: 65 inches
- Aspect Ratio: 16:9
- Resolution: 3840(H) × 2160(V)
- Backlight Type: DLED
- Refreshing Frequency: 60Hz
- Display Color: 1.07B (10bit)
- Display Area: 1428.48(H) × 803.52(V) mm
- Pixel Pitch: 0.372 × 0.372 mm
- Response Time: 8ms
- Contrast Ratio: 1200:1
- Viewing Angle: 178° (H/V)
- Lifetime: ≥30,000 Hours
- Brightness with Glass (typ): 300 cd/m²
- Brightness with Glass (min): 350 cd/m²
Touch System
- Sensing Type: Infrared Recognition
- Touch Point: 20 Points Touch
- Touch Tool: Finger, Passive Infrared Pen
- Minimum Object Size: 3mm
- Response Time: ≤10ms
- Accuracy: ±2mm
- Writing Height: ≤3mm
- Touch Drive: Free Drive
- Communication Mode: Full-Speed USB
- Interpolation Resolution: 32767(W) × 32767(D)
I/O Ports
- HDMI In: 3
- HDMI Out: 1
- USB 2.0: 3
- USB 3.0: 3
- VGA In: 1
- SPDIF: 1
- LAN (RJ45): 1
- Audio In: 1
- Audio Out: 1
- Touch 2.0: 2
- Touch Out: 1
- RS232: 1
- Front Physical Keys: 1
Audio
- Sound Channel: 2.0
- Output Power: 2 × 10W
Android System
- System Version: Android 8.0
- CPU: A73 ×2 + A53 ×2
- GPU: Mali G51 ×2
- RAM: 2GB
- ROM: 16GB
Optional PC Module Available
- Models: SIO1
Power
- Power Requirements: 100–240V, 50/60Hz, 3.0A
- Overall Power: 300W
- Standby Power: ≤0.5W
Physical Specifications
- Dimensions (L×H×D): 1489 × 897 × 87 mm
- Package Dimensions (L×H×D): 1628 × 208 × 1005 mm
- Thickness of Machine & Wall Mount: 117 mm (WIB9060C)
- Wall-Hanging Screw Spec: M8 × 25 mm
- VESA: 600 × 400 mm
- Net Weight: 38.75 kg
- Gross Weight: 48.5 kg
