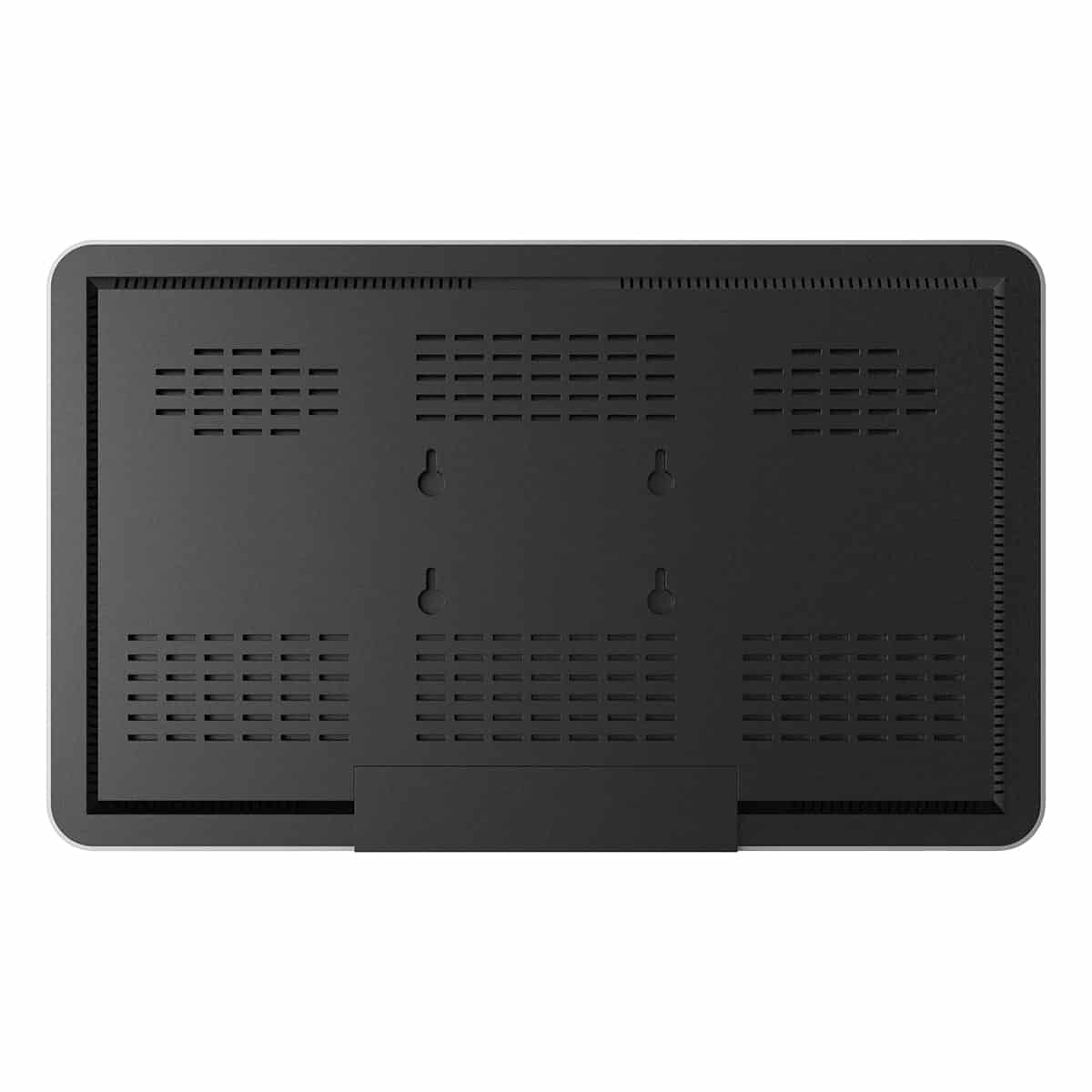

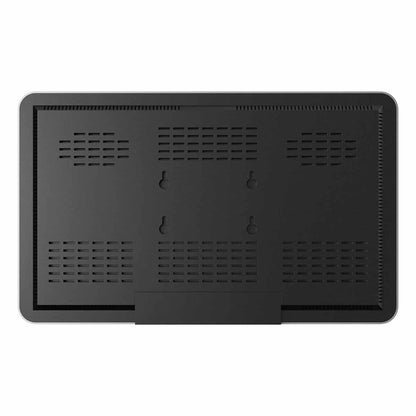

84″ Indoor Poster Display

Description

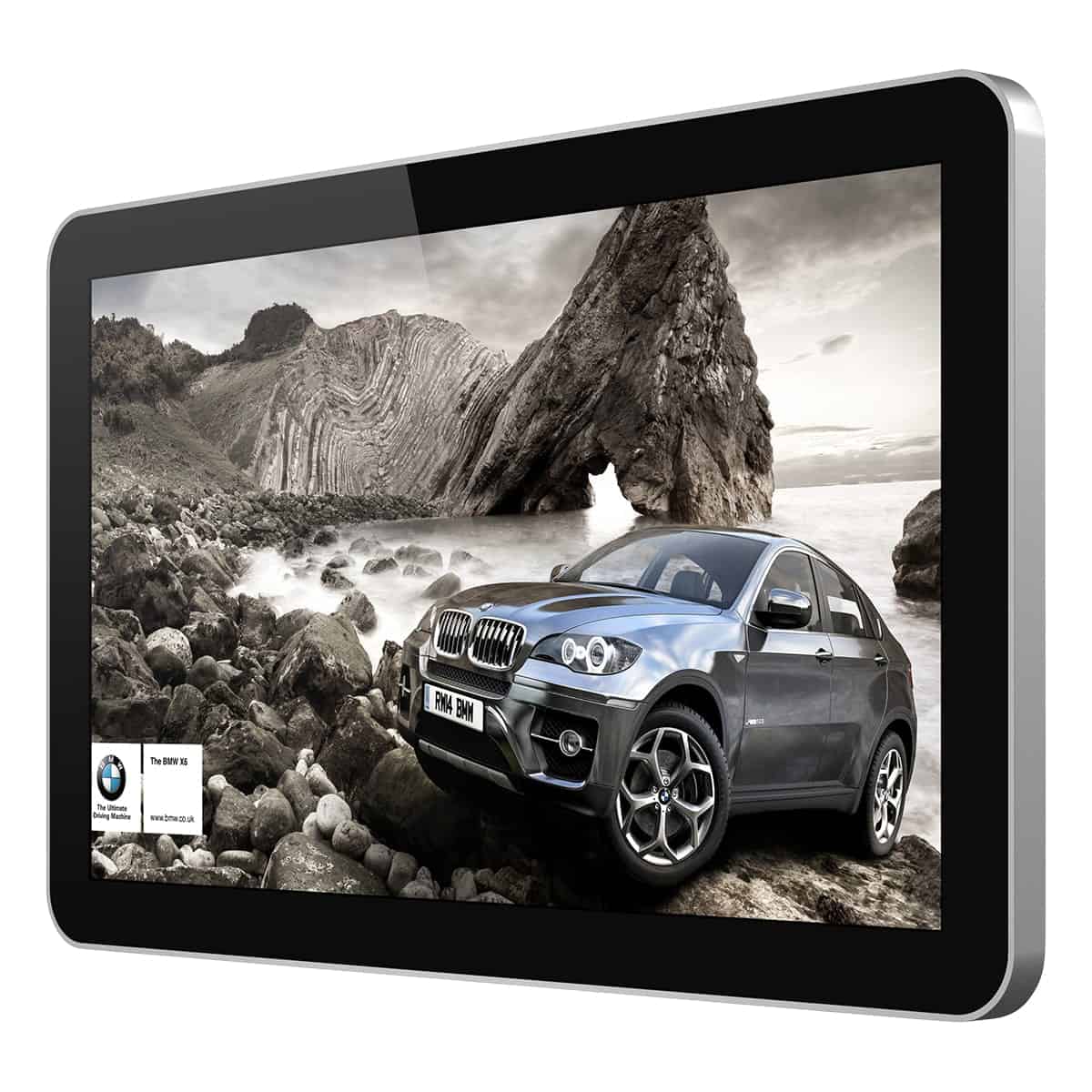

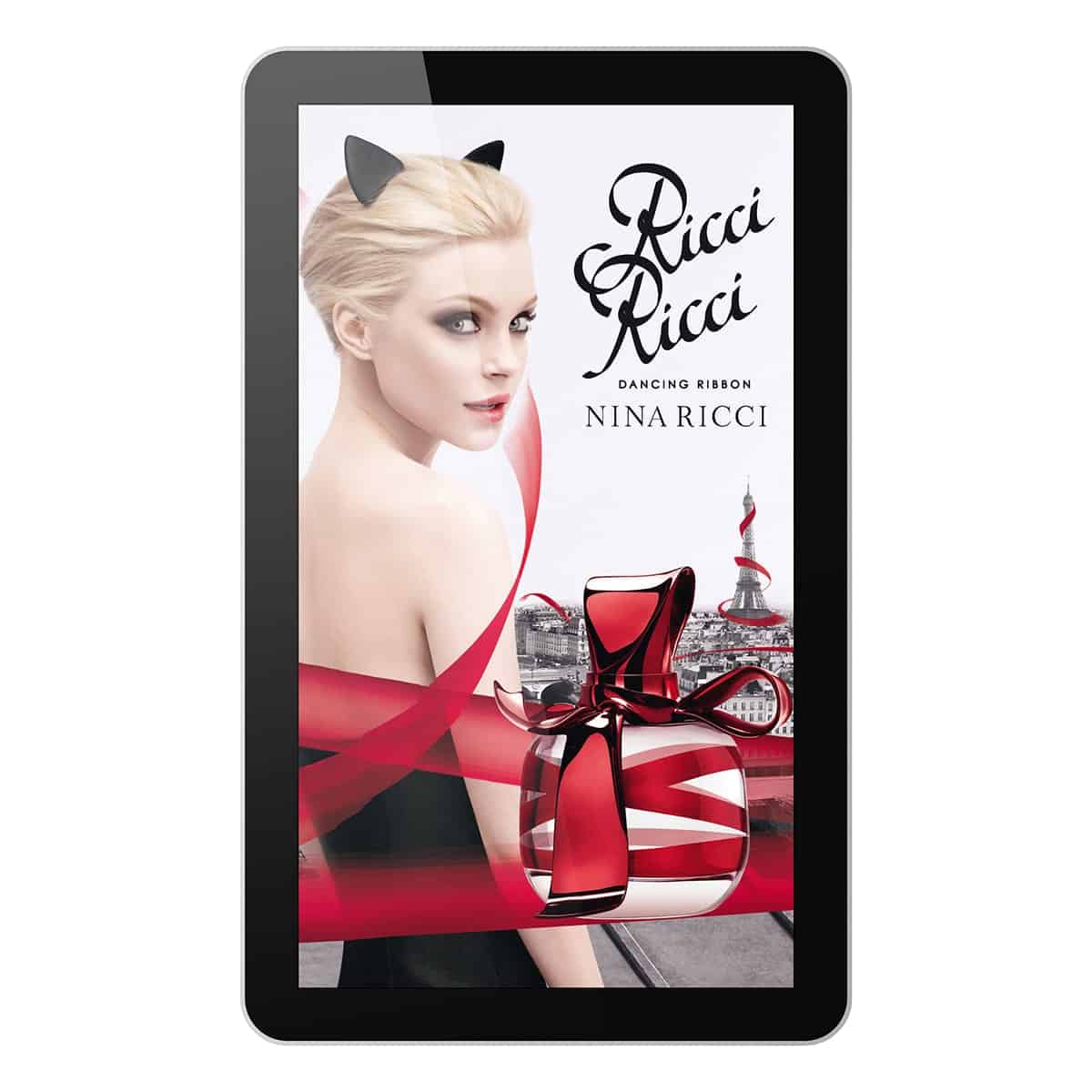

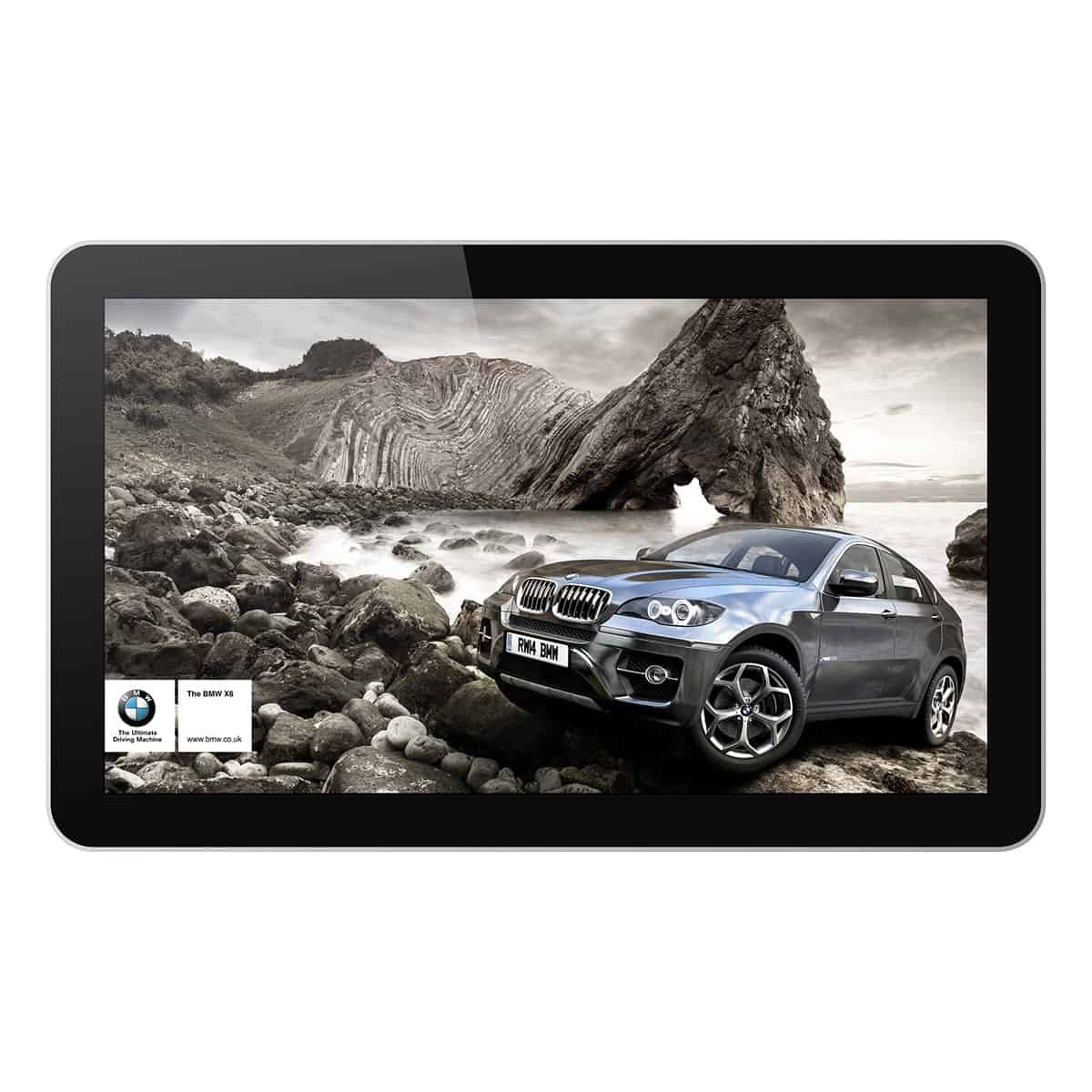

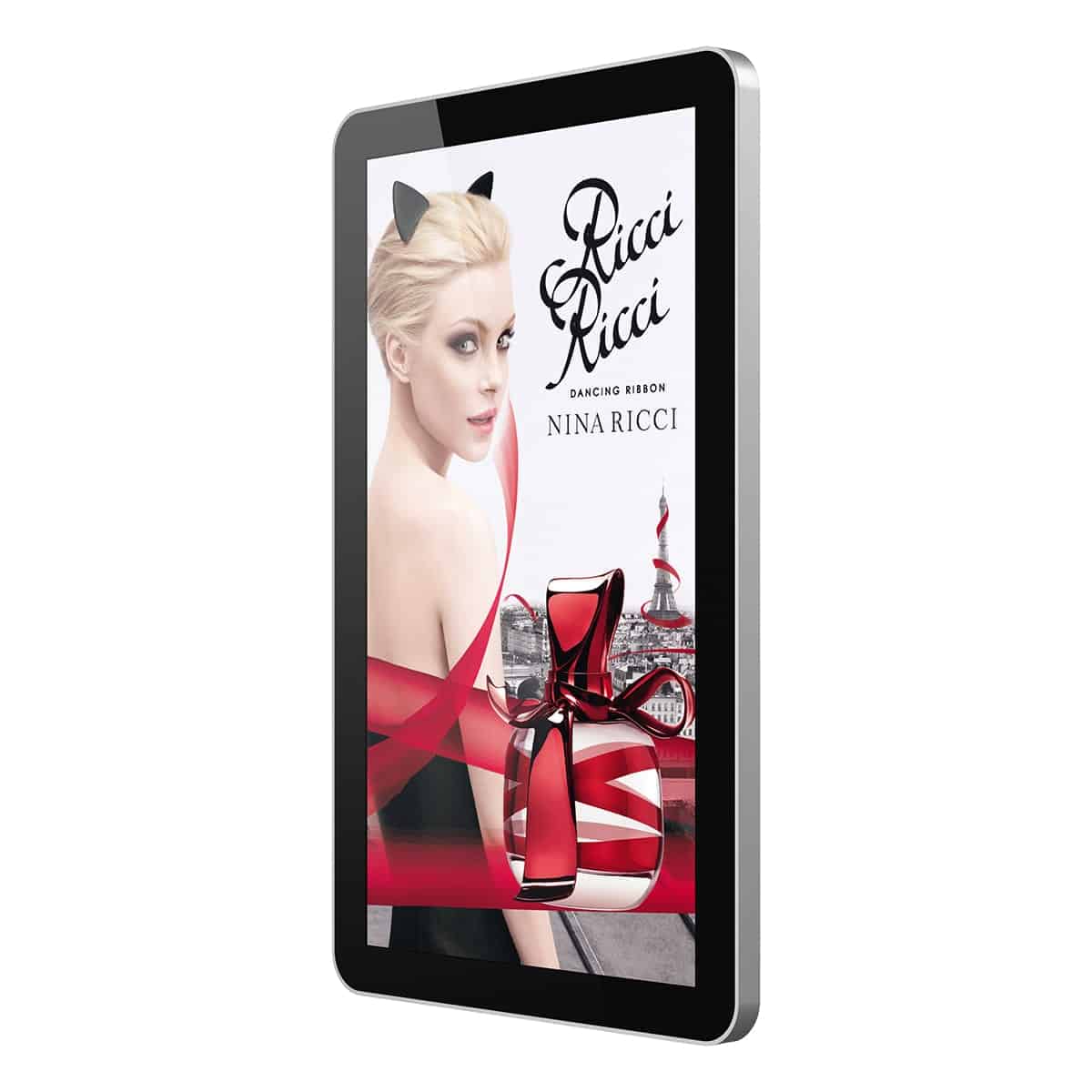

Teksmart®’s 84″ indoor digital poster display is the perfect solution for sharing large-format graphics and videos. Its 1920 x 1080 pixel HD screen offers a crisp display, while its super slim profile and tablet styling allow it to blend in seamlessly no matter where you use it. With built-in speakers, optional touchscreen functionality and your choice orientation, this screen is able to meet your specific requirements.

Features

• Highly configurable ‘built to order’ hardware
• Built for 24/7 commercial use and designed for public spaces
• High definition screen with a wide viewing angle

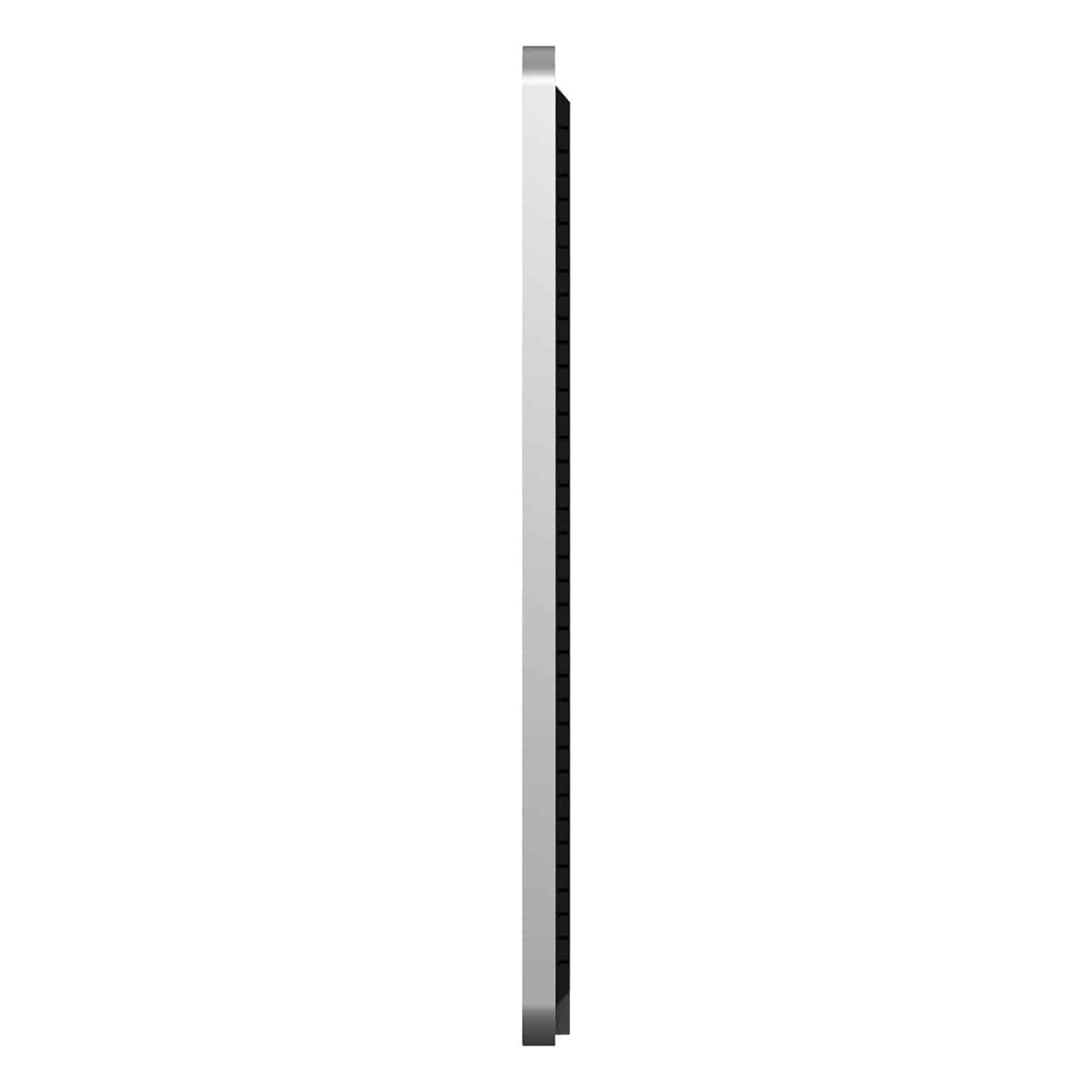

• Tablet styling and super slim profile
• Integrated premium quality speakers
• Comes complete with wall-mount bracket


Specifications

Display

• Screen Size: 84″
• Screen Type: LCD
• Resolution: 3840 x 2160 Pixels (4K)
• Brightness: 450 cd/m2
• Aspect Ratio: 16:9
• Contrast Ratio: 5000:1
• Colour Depth: 16.7M
• Viewing Angle (H/V): 178/178
• Response Time: 6ms
• Lifetime: 60,000 Hours

Power

• Mains Power: AC 100 ~ 240V, 50/60 Hz
• Power Consumption: 189 kWh
• Standby Consumption: ≤5 kWh/d

Dimensions & Weights

• Unit Size (W x H x D): 196 x 115 x 8 cm
• Unit Weight: 123 kg
• Packaged Size (W x H x D): 216 x 128 x 24 cm
• Gross Weight: 144 kg


Design

• Colour/s: Black with Silver Trim
• Material/s: Aluminium Trim, Glass Face & Steel Case

Other

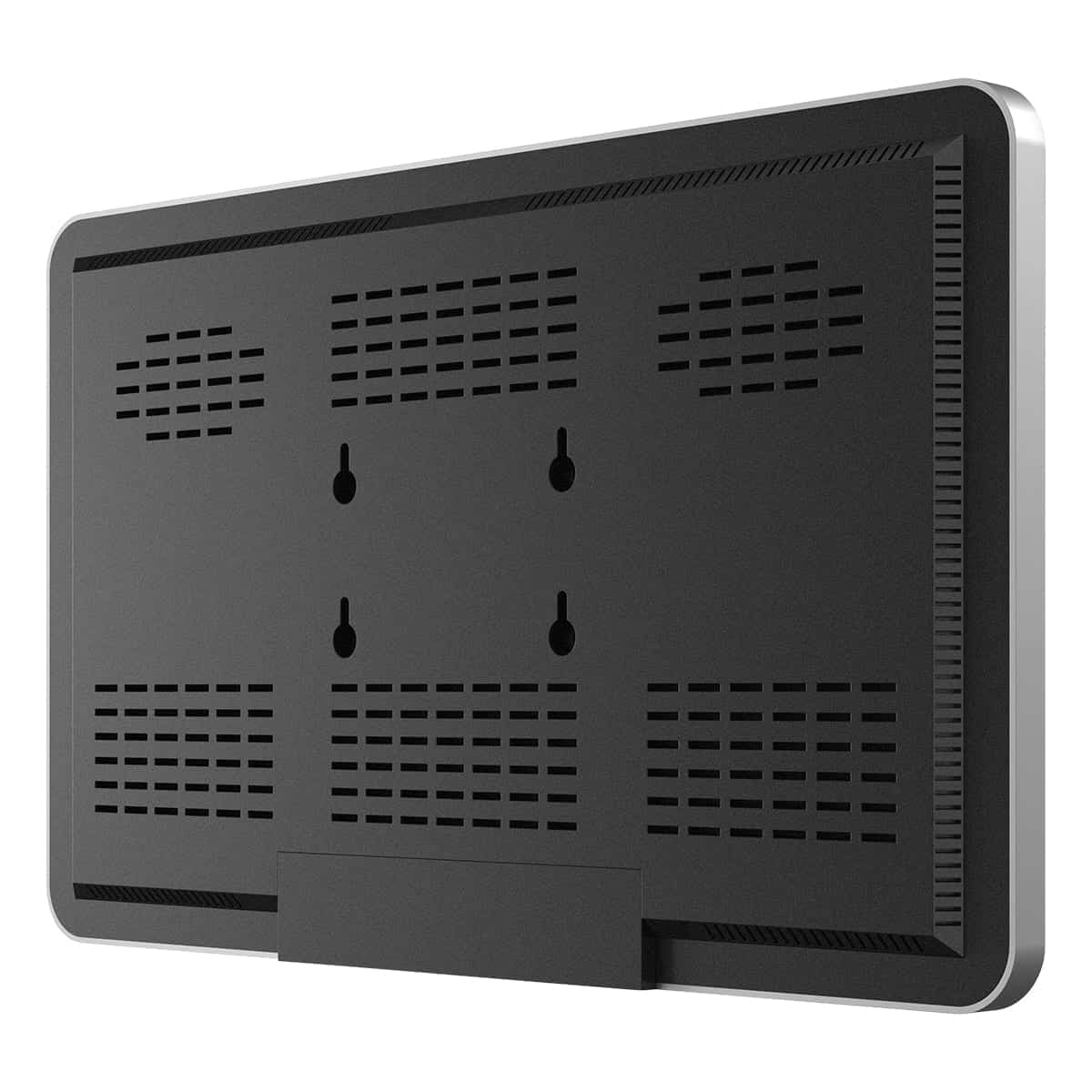

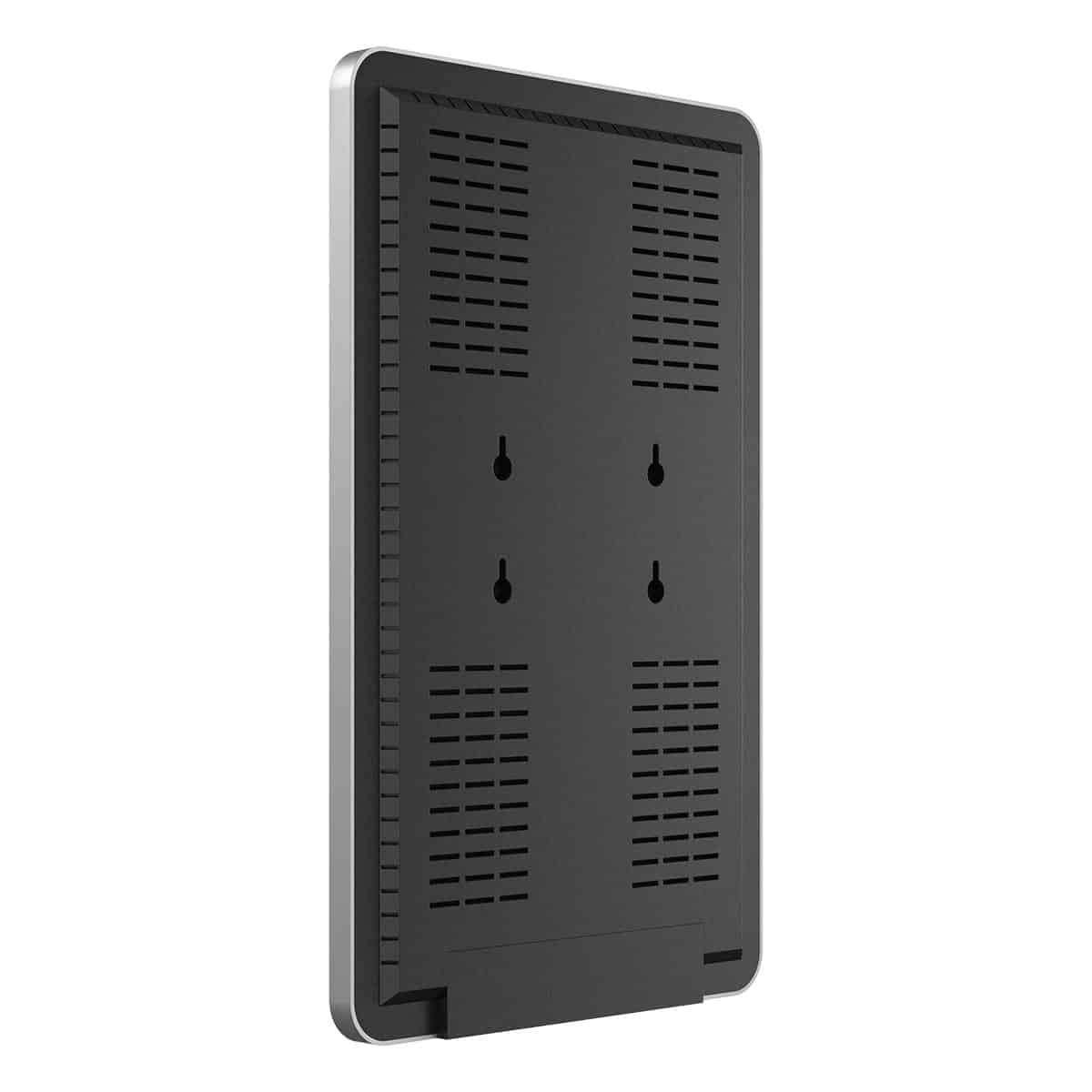

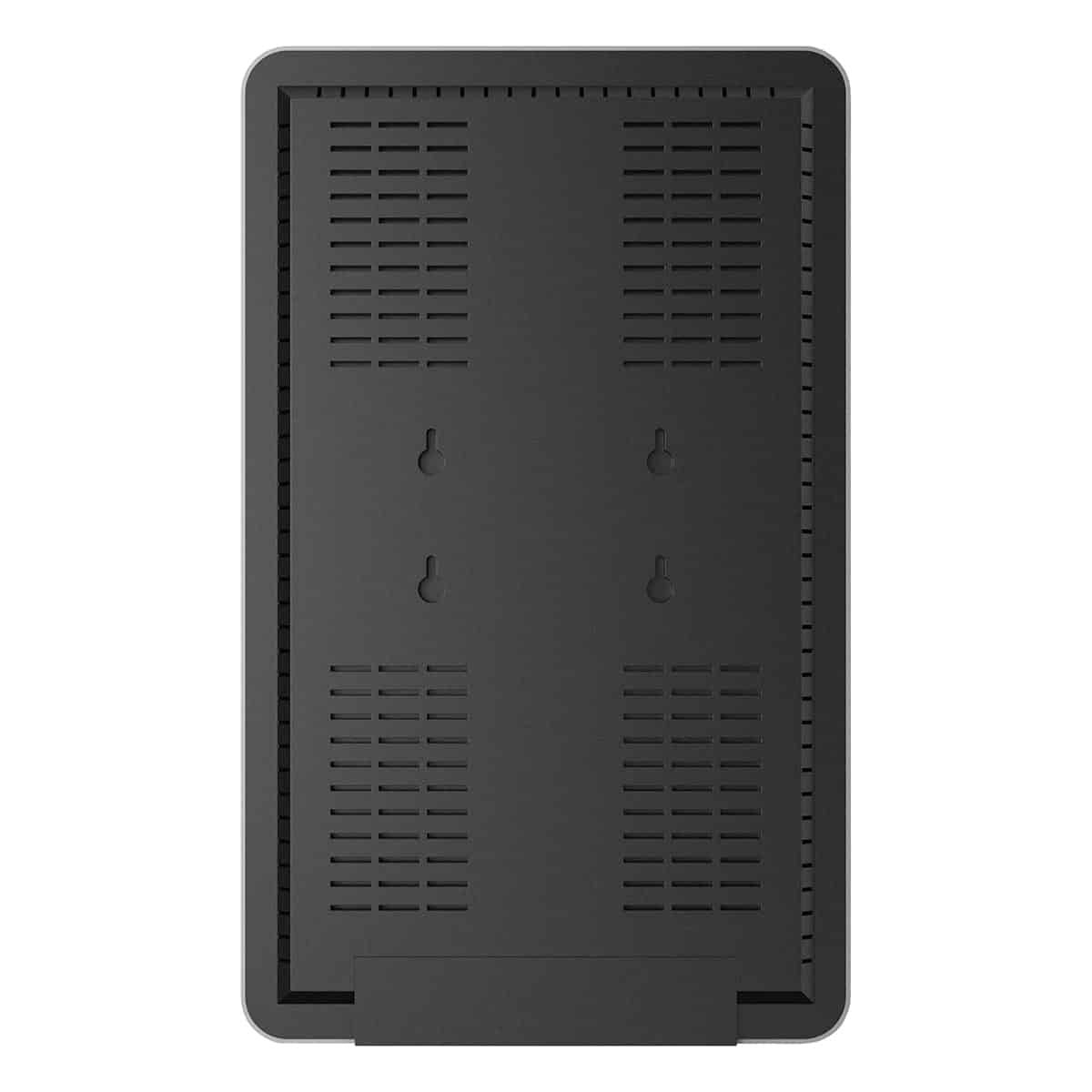

• Installation: Wall Mounted
• VESA Compatibility: 400 x 400mm
• Speakers: 2 x 10W Internal Speakers
• Certifications & Standards: CE, RoHS, IP20
• Working Temperature: -10°C ~ +50°C
• Working Humidity: 10% – 90%

Package Contents

• 1 x Poster Display
• 1 x Wall Mount Bracket
• 1 x AC Power Lead
• 1 x Wi-Fi Antenna
• 1 x Key for Rear Access Door

Integrated Media Player Options

1. No Media Player (HDMI Input Only)

2. Entry-Level Android OS Media Player

• Operating System: Android® 5.1
• Processor: Rockchip® Octa-Core 1.8GHz
• Memory: 1GB DDR3 Ram
• Storage: 8GB Flash
• Network: Wi-Fi, RJ45 LAN
• Ports: USB, RJ45, HDMI

3. Enterprise-Level Windows OS (i3 PC) Media Player

• Operating System: Windows® 10
• Processor: Intel® i3 3240 Dual-Core 3.4GHz
• Memory: 4GB DDR3 Ram
• Storage: 240GB SSD Hard Drive
• Network: Wi-Fi, RJ45 LAN
• Ports: USB, RJ45, HDMI

4. Premium-Level Windows OS (i5 PC) Media Player

• Operating System: Windows® 10
• Processor: Intel® i5 3470 Quad-Core 3.2GHz
• Memory: 8GB DDR3 Ram
• Storage: 240GB SSD Hard Drive
• Network: Wi-Fi, RJ45 LAN
• Ports: USB, RJ45, HDMI

Integrated Touchscreen Option

• Detection Method: Projected Capacitive 10-Point Touch
• Touch Method: Finger, Stylus or Opaque Object
• Interpolation: 32767 x 32767
• Response Time: ≤20ms
• Accuracy: ±2mm
• Interface: USB
• Supported OS: Windows, MAC, Linux, Android
